DIN TYPE COPPER CABLE LUG
Contact Information
-
Hotline :
+86-577-61732182
- Email :
-
Tel :
+86-577-61732182
- Whatsapp :
|
Catalog No. 2015-2018 |

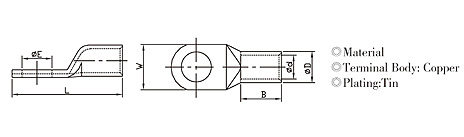

Model | Dimensions(mm) | |||||
| φE | ΦD | Φd | W | B | L | ||
| WB0012-2001 | DIN6-5 | 5.3 | 5.5 | 3.8 | 8.5 | 10.0 | 30.5 |
| WB0012-2002 | DIN6-6 | 6.4 | 5.5 | 3.8 | 8.5 | 10.0 | 31.5 |
| WB0012-2003 | DIN6-8 | 8.4 | 5.5 | 3.8 | 13.0 | 10.0 | 34.0 |
| WB0012-2004 | DIN10-5 | 5.3 | 6.0 | 4.5 | 9.0 | 10.0 | 34.0 |
| WB0012-2005 | DIN10-6 | 6.4 | 6.0 | 4.5 | 9.0 | 10.0 | 34.5 |
| WB0012-2006 | DIN10-8 | 8.4 | 6.0 | 4.5 | 13.0 | 10.0 | 37.0 |
| WB0012-2007 | DIN10-10 | 10.5 | 6.0 | 4.5 | 15.0 | 10.0 | 39.0 |
| WB0012-2008 | DIN16-6 | 6.4 | 8.5 | 5.5 | 13.0 | 20.0 | 43.5 |
| WB0012-2009 | DIN16-8 | 8.4 | 8.5 | 5.5 | 13.0 | 20.0 | 46.0 |
| WB0012-2010 | DIN16-10 | 10.5 | 8.5 | 5.5 | 17.0 | 20.0 | 48.0 |
| WB0012-2011 | DIN16-12 | 13.0 | 8.5 | 5.5 | 18.0 | 20.0 | 49.0 |
| WB0012-2012 | DIN25-6 | 6.4 | 10.0 | 7.0 | 14.0 | 20.0 | 45.5 |
| WB0012-2013 | DIN25-8 | 8.4 | 10.0 | 7.0 | 16.0 | 20.0 | 48.0 |
| WB0012-2014 | DIN25-10 | 10.5 | 10.0 | 7.0 | 17.0 | 20.0 | 50.0 |
| WB0012-2015 | DIN25-12 | 13.0 | 10.0 | 7.0 | 19.0 | 20.0 | 51.0 |
| WB0012-2016 | DIN35-6 | 6.4 | 12.5 | 8.2 | 17.0 | 20.0 | 49.5 |
| WB0012-2017 | DIN35-8 | 8.4 | 12.5 | 8.2 | 17.0 | 20.0 | 52.0 |
| WB0012-2018 | DIN35-10 | 10.5 | 12.5 | 8.2 | 19.0 | 20.0 | 54.0 |
| WB0012-2019 | DIN35-12 | 13.0 | 12.5 | 8.2 | 21.0 | 20.0 | 55.0 |
| WB0012-2020 | DIN35-14 | 15.0 | 12.5 | 8.2 | 21.0 | 20.0 | 56.5 |
| WB0012-2021 | DIN50-8 | 8.4 | 14.5 | 10.0 | 20.0 | 28.0 | 62.0 |
| WB0012-2022 | DIN50-10 | 10.5 | 14.5 | 10.0 | 22.0 | 28.0 | 64.0 |
| WB0012-2023 | DIN50-12 | 13.0 | 14.5 | 10.0 | 24.0 | 28.0 | 65.0 |
| WB0012-2024 | DIN50-14 | 15.0 | 14.5 | 10.0 | 24.0 | 28.0 | 66.5 |
| WB0012-2025 | DIN50-16 | 17.0 | 14.5 | 10.0 | 28.0 | 28.0 | 68.0 |
| WB0012-2026 | DIN70-8 | 8.4 | 16.5 | 11.5 | 24.0 | 28.0 | 65.0 |
| WB0012-2027 | DIN70-10 | 10.5 | 16.5 | 11.5 | 24.0 | 28.0 | 67.0 |
| WB0012-2028 | DIN70-12 | 13.0 | 16.5 | 11.5 | 24.0 | 28.0 | 68.0 |
| WB0012-2029 | DIN70-14 | 15.0 | 16.5 | 11.5 | 24.0 | 28.0 | 69.5 |
| WB0012-2030 | DIN70-16 | 17.0 | 16.5 | 11.5 | 30.0 | 28.0 | 71.0 |
| WB0012-2031 | DIN95-8 | 8.4 | 19.0 | 13.5 | 28.0 | 35.0 | 77.0 |
| WB0012-2032 | DIN95-10 | 10.5 | 19.0 | 13.5 | 28.0 | 35.0 | 77.0 |
| WB0012-2033 | DIN95-12 | 13.0 | 19.0 | 13.5 | 28.0 | 35.0 | 78.0 |
| WB0012-2034 | DIN95-14 | 15.0 | 19.0 | 13.5 | 28.0 | 35.0 | 79.5 |
| WB0012-2035 | DIN95-16 | 17.0 | 19.0 | 13.5 | 32.0 | 35.0 | 81.0 |
| WB0012-2036 | DIN120-10 | 10.5 | 21.0 | 15.5 | 32.0 | 35.0 | 85.0 |
| WB0012-2037 | DIN120-12 | 13.0 | 21.0 | 15.5 | 32.0 | 35.0 | 86.0 |
| WB0012-2038 | DIN120-14 | 15.0 | 21.0 | 15.5 | 32.0 | 35.0 | 88.0 |
| WB0012-2039 | DIN120-16 | 17.0 | 21.0 | 15.5 | 32.0 | 35.0 | 89.0 |
| WB0012-2040 | DIN120-20 | 21.0 | 21.0 | 15.5 | 38.0 | 35.0 | 91.0 |
| WB0012-2041 | DIN150-10 | 10.5 | 23.5 | 17.0 | 34.0 | 35.0 | 93.0 |
| WB0012-2042 | DIN150-12 | 13.0 | 23.5 | 17.0 | 34.0 | 35.0 | 94.0 |
| WB0012-2043 | DIN150-14 | 15.0 | 23.5 | 17.0 | 34.0 | 35.0 | 97.0 |
| WB0012-2044 | DIN150-16 | 17.0 | 23.5 | 17.0 | 34.0 | 35.0 | 97.0 |
| WB0012-2045 | DIN150-20 | 21.0 | 23.5 | 17.0 | 40.0 | 35.0 | 99.0 |
| WB0012-2046 | DIN185-10 | 10.5 | 25.5 | 19.0 | 37.0 | 40.0 | 97.0 |
| WB0012-2047 | DIN185-12 | 13.0 | 25.5 | 19.0 | 37.0 | 40.0 | 98.0 |
| WB0012-2048 | DIN185-14 | 15.0 | 25.5 | 19.0 | 37.0 | 40.0 | 101.0 |
| WB0012-2049 | DIN185-16 | 17.0 | 25.5 | 19.0 | 37.0 | 40.0 | 101.0 |
| WB0012-2050 | DIN185-20 | 21.0 | 25.5 | 19.0 | 40.0 | 40.0 | 103.0 |
| WB0012-2051 | DIN240-12 | 13.0 | 29.0 | 21.5 | 42.0 | 40.0 | 108.0 |
| WB0012-2052 | DIN240-14 | 15.0 | 29.0 | 21.5 | 42.0 | 40.0 | 111.0 |
| WB0012-2053 | DIN240-16 | 17.0 | 29.0 | 21.5 | 42.0 | 40.0 | 111.0 |
| WB0012-2054 | DIN240-20 | 21.0 | 29.0 | 21.5 | 45.0 | 40.0 | 113.0 |
| WB0012-2055 | DIN300-12 | 13.0 | 32.0 | 24.5 | 46.0 | 50.0 | 119.0 |
| WB0012-2056 | DIN300-14 | 15.0 | 32.0 | 24.5 | 46.0 | 50.0 | 119.0 |
| WB0012-2057 | DIN300-16 | 17.0 | 32.0 | 24.5 | 46.0 | 50.0 | 119.0 |
| WB0012-2058 | DIN300-20 | 21.0 | 32.0 | 24.5 | 46.0 | 50.0 | 122.0 |
| WB0012-2059 | DIN400-14 | 15.0 | 38.5 | 27.5 | 55.0 | 70.0 | 140.0 |
| WB0012-2060 | DIN400-16 | 17.0 | 38.5 | 27.5 | 55.0 | 70.0 | 140.0 |
| WB0012-2061 | DIN400-20 | 21.0 | 38.5 | 27.5 | 55.0 | 70.0 | 140.0 |
| WB0012-2062 | DIN500-16 | 17.0 | 42.0 | 31.0 | 60.0 | 70.0 | 150.0 |
| WB0012-2063 | DIN500-20 | 21.0 | 42.0 | 31.0 | 60.0 | 70.0 | 150.0 |
| WB0012-2064 | DIN625-16 | 17.0 | 44.0 | 34.5 | 64.0 | 80.0 | 160.0 |
| WB0012-2065 | DIN625-20 | 21.0 | 44.0 | 34.5 | 64.0 | 80.0 | 160.0 |
| WB0012-2066 | DIN800-16 | 17.0 | 52.0 | 40.0 | 75.0 | 100.0 | 195.0 |
| WB0012-2067 | DIN800-20 | 21.0 | 52.0 | 40.0 | 75.0 | 100.0 | 195.0 |
| WB0012-2068 | DIN1000-16 | 17.0 | 58.0 | 44.0 | 85.0 | 100.0 | 195.0 |
| WB0012-2069 | DIN1000-20 | 21.0 | 58.0 | 44.0 | 85.0 | 100.0 | 195.0 |
